xWhat Is the ESOE 5MP AHD Security Camera System?

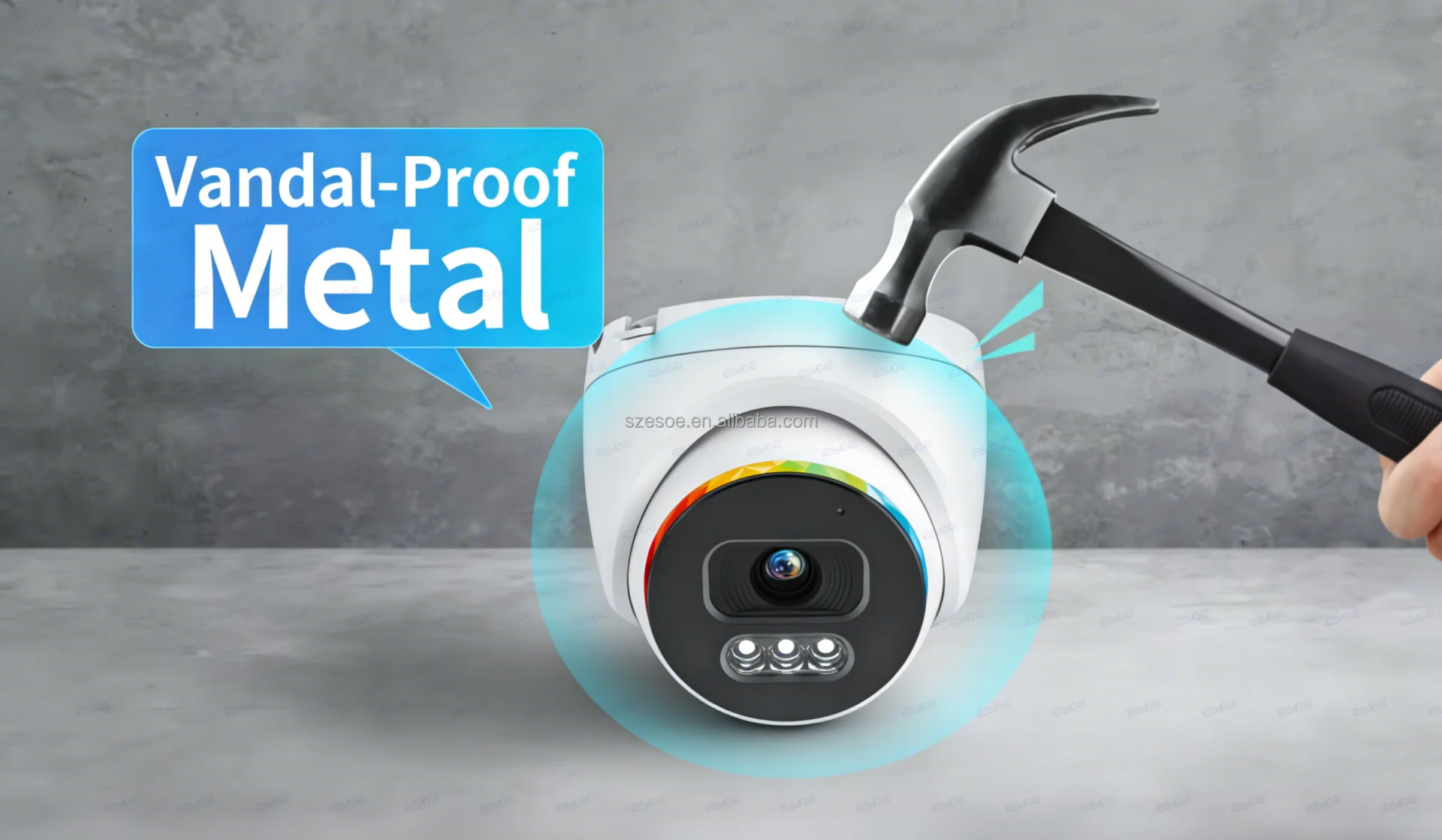

The ESOE 5MP AHD security camera system is a complete analog CCTV surveillance kit that pairs a multi-channel DVR (4CH / 8CH / 16CH) with 5-megapixel AHD dome cameras. Unlike IP/PoE systems that require network configuration, this analog system uses simple BNC coaxial cable connections for plug-and-play installation — ideal for users who want reliable security without networking complexity. Each dome camera features dual warm and cool LEDs for 100ft full-color night vision, a built-in microphone for two-way audio, IP67 waterproof metal housing, and AI-powered human and vehicle detection via the T5AI chipset that reduces false alerts by 99%. The DVR supports H.265+ compression to maximize storage efficiency and includes 1TB HDD options. Compatible with the free Hieasy app for remote viewing on iOS and Android with no monthly subscription. ONVIF compatible. Manufactured by Shenzhen ESOE Technology Co., Ltd. with CE, FCC, RoHS, and ISO9001 certifications.
Why Choose Analog AHD Over IP Cameras?
Analog AHD systems offer key advantages for many users: no network setup required, longer cable runs (up to 500m with RG6), lower cost per camera, and zero latency in live view. Simply connect each camera to the DVR with a BNC cable, plug in power, and your system is live. No router configuration, no IP address conflicts, no network bandwidth concerns.
5MP Super HD Resolution
Each dome camera captures 5-megapixel (2592x1944) resolution video — 2.5x sharper than standard 1080P. Identify faces, read license plates, and see fine details across wide areas. The high resolution combined with the wide-angle lens provides comprehensive coverage with fewer cameras.
AI Human & Vehicle Detection
The T5AI chipset uses deep learning to distinguish humans and vehicles from irrelevant motion like swaying trees or animals, reducing false alerts by 99%. Receive only the notifications that matter — a person at your door, a car in your driveway, or someone crossing a restricted boundary.

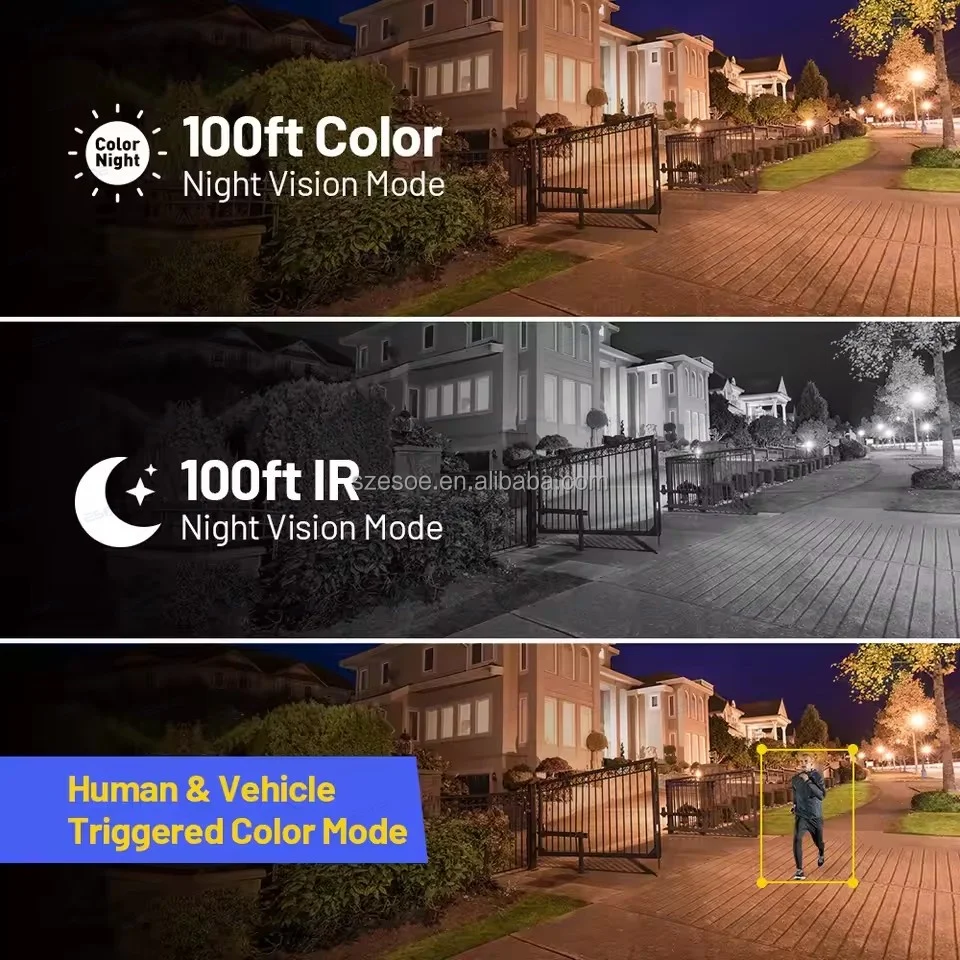

100ft Color Night Vision
Dual warm and cool LED technology provides three night vision modes. Full-color mode illuminates up to 100 feet for vivid nighttime footage where you can identify clothing colors and vehicle details. Infrared mode for covert monitoring. Smart mode activates color only when a person is detected — energy efficient yet always ready.
Two-Way Audio Communication
Built-in microphone in each camera enables real-time two-way audio through the Hieasy app. Talk to delivery drivers, warn intruders, or check on family members from anywhere in the world using your smartphone.

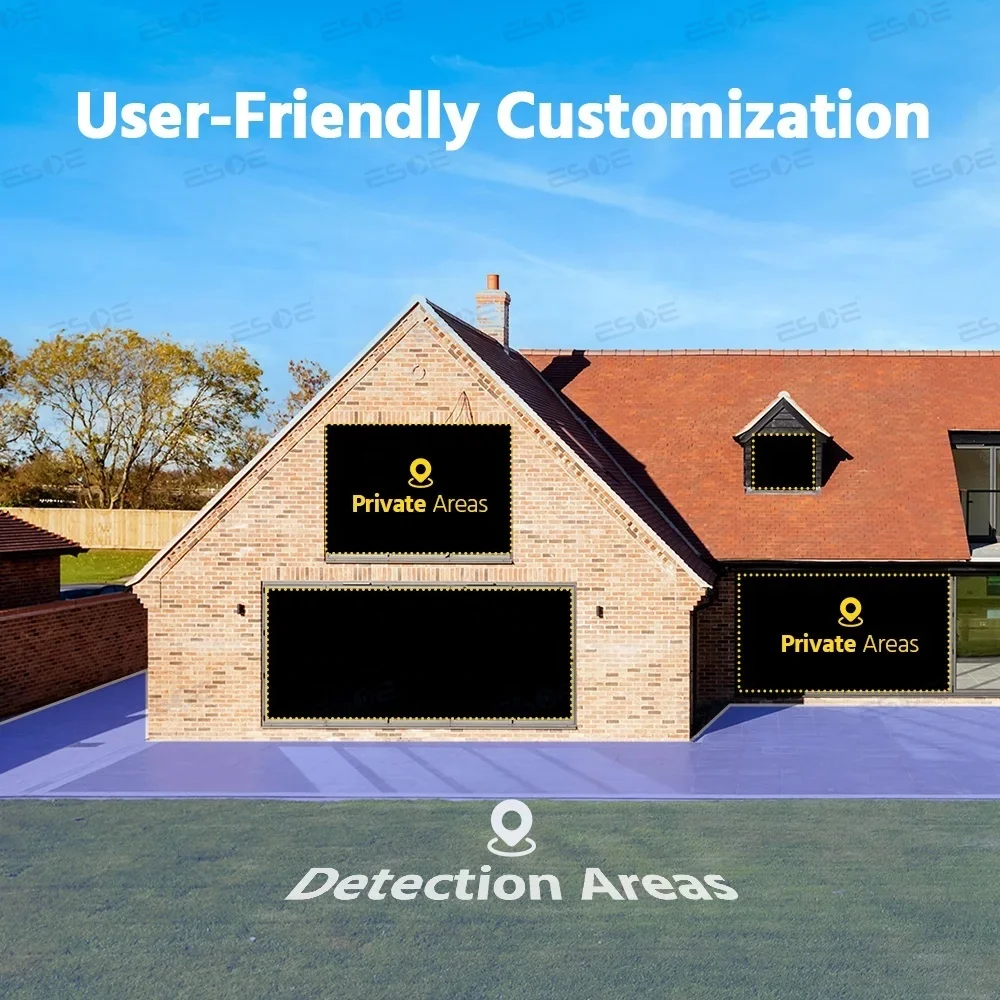

Perimeter Protection & Smart Zones
Define custom detection zones with line crossing detection, region intrusion alerts, and boundary monitoring. Set high-priority zones around fences, doorways, and parking areas for instant alarm notifications when someone enters restricted areas.
Instant Smart Alerts
Get real-time push notifications and email alerts on your phone the moment suspicious activity is detected. The AI filters out irrelevant motion to prevent alert fatigue — you only hear about events that matter.
H.265+ Compression — Maximum Storage
H.265+ encoding saves up to 75% storage space compared to H.264. The included 1TB HDD stores weeks of continuous recording. Supports SATA hard drives up to 8TB for extended storage needs.
Simple BNC Installation
Connect each camera to the DVR using standard BNC coaxial cable — no network configuration, no IP setup, no router needed. Supports cable runs up to 300m (1000ft) with RG59 or 500m (1640ft) with RG6 coaxial cable. Each camera requires a separate 12V DC power adapter (included).

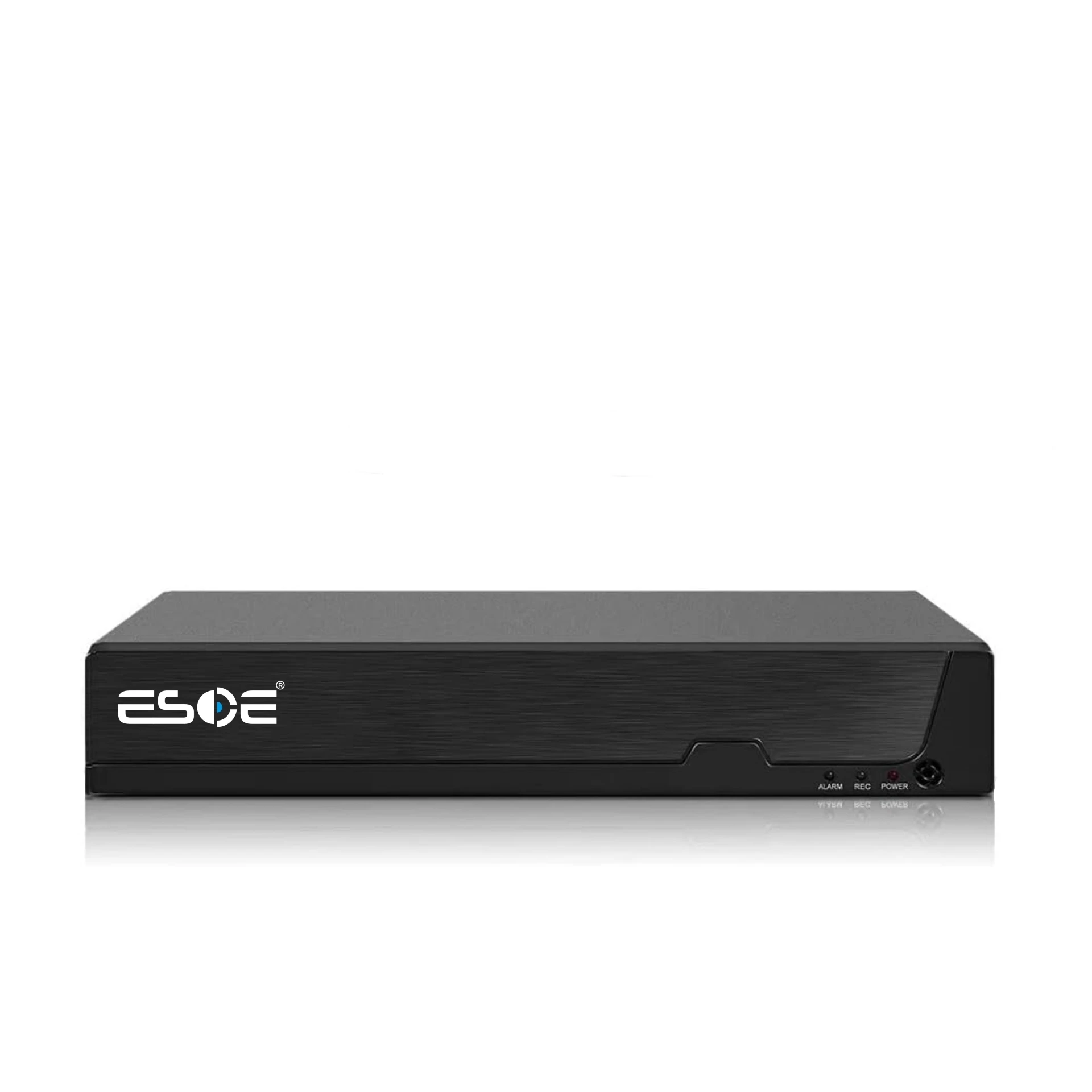

Remote Viewing via Hieasy App
Connect the DVR to your router and view live feeds from anywhere using the free Hieasy app. Compatible with iOS, Android, Windows, and Mac. P2P cloud technology — just scan the QR code to connect, no static IP or port forwarding needed.
Certifications & Quality
Specifications
| Camera Type | 5MP AHD Dome Camera (analog) |
| Resolution | 5MP (2592x1944) / 4MP / 1080P |
| DVR Channels | 4CH / 8CH / 16CH |
| Connection | BNC Coaxial Cable (analog, not IP/PoE) |
| Compression | H.265+ / H.265 / H.264 |
| Night Vision | 100ft Color / IR / Smart Triggered |
| AI Features | Human/Vehicle Detection, Face Capture, People Counting |
| Audio | Two-Way Audio (built-in mic) |
| Waterproof | IP67 Metal Housing |

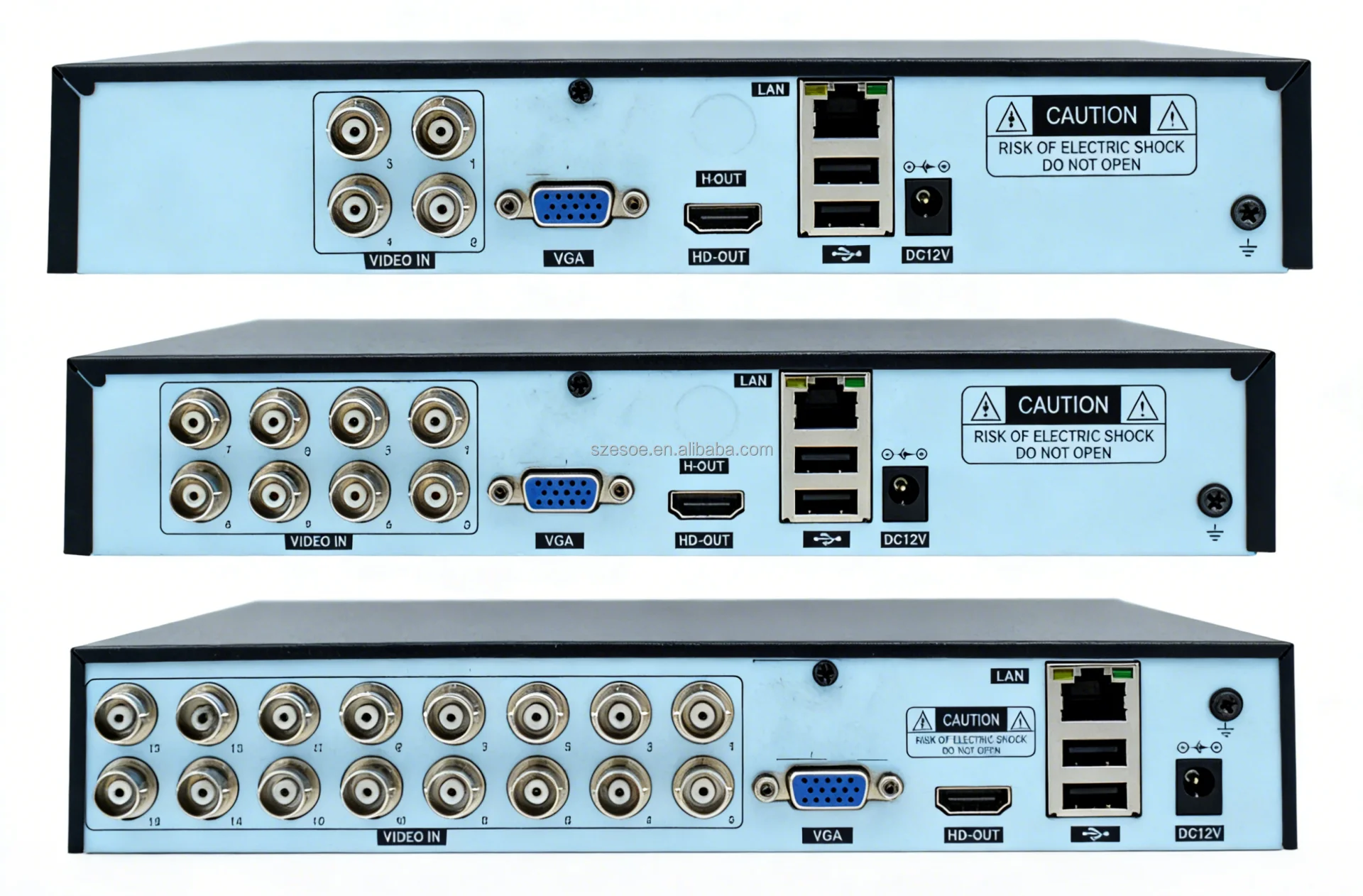

| Video Output | HDMI + VGA (simultaneous) |
| Storage | 1x SATA HDD up to 8TB (1TB option available) |
| App | Hieasy (iOS & Android) — free, no subscription |
| Certifications | CE, FCC, RoHS, ISO9001 |
What Is in the Box
- 1x DVR (4CH / 8CH / 16CH)
- 5MP AHD Dome Cameras (quantity per selected kit)
- BNC Cables + Power Cables (one set per camera)
- 1x 12V Power Adapter for DVR
- 12V Power Adapters for Cameras
- 1x USB Mouse
- 1x User Manual
- Mounting Screws & Brackets
Frequently Asked Questions
Q: What is the difference between AHD and PoE/IP cameras?
A: AHD cameras use analog BNC coaxial cables and do not require network/router setup. PoE/IP cameras use Ethernet cables and connect through a network. AHD is simpler to install and lower cost; IP offers higher resolution options and more flexibility.
Q: Can I start with fewer cameras and add more later?
A: Yes. The DVR supports up to 4, 8, or 16 cameras. Start with any number and add more cameras anytime.
Q: Is a hard drive included?
A: Select the 1TB HDD variant if you want storage included. The base kit does not include a hard drive — you can use any SATA HDD up to 8TB.
Q: Is a monthly subscription required?
A: No. The Hieasy app is completely free with no monthly fees.
Q: How far can I run the camera cable?
A: BNC coaxial cable supports up to 300m (1000ft) with RG59 or 500m (1640ft) with RG6 — much longer than PoE systems.
Q: Can I view cameras remotely?
A: Yes. Connect the DVR to your router via Ethernet. Then use the Hieasy app to view from anywhere — just scan the QR code.
