xWhat Is the ESOE 5MP AHD Dome Camera Security System?

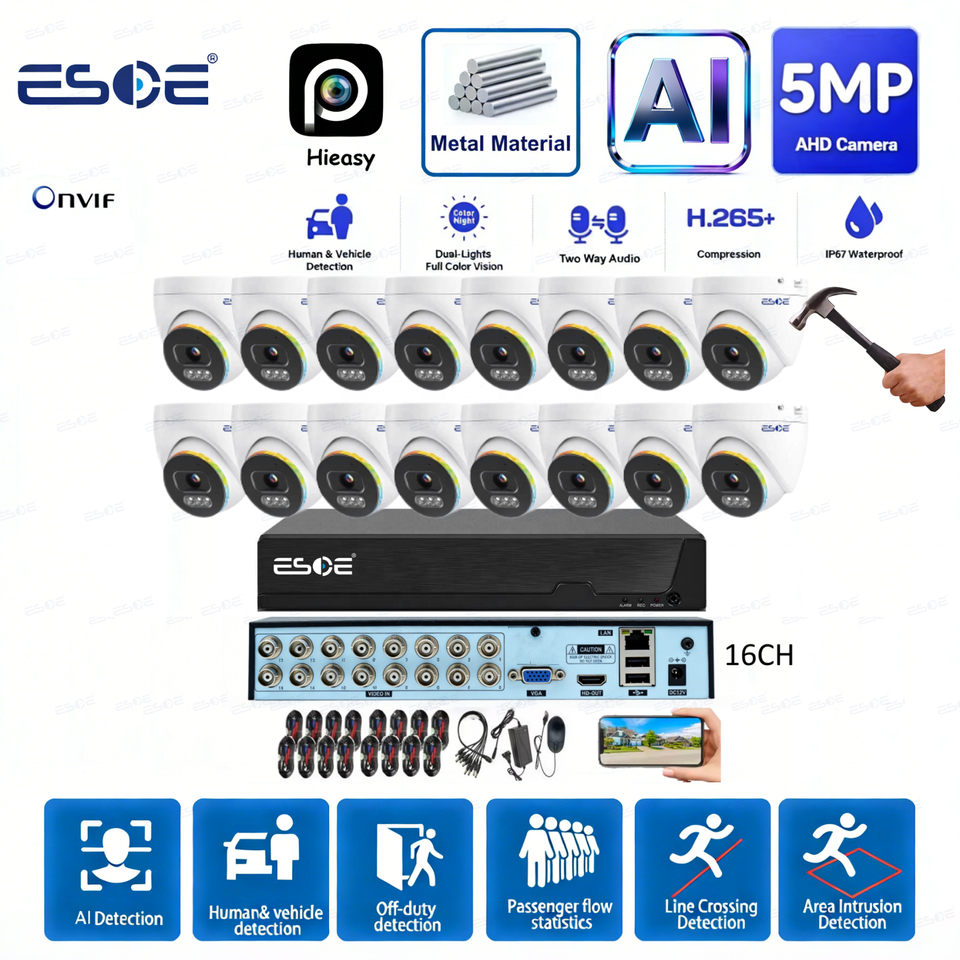

The ESOE 5MP AHD dome camera security system is a complete analog CCTV surveillance kit combining a multi-channel DVR (4CH/8CH/16CH) with 5-megapixel metal dome cameras featuring dual warm and cool LEDs for 100ft full-color night vision. This system uses BNC coaxial cable connections for simple plug-and-play installation without any network configuration. The 5-in-1 DVR supports AHD, TVI, CVI, CVBS, and IP input formats, making it compatible with virtually any analog or IP camera. Key features include AI-powered human and vehicle detection via the T5AI chipset (99% fewer false alerts), two-way audio with built-in microphone, H.265+ compression for maximum storage efficiency, and IP67 waterproof metal housing rated for -22°F to 140°F. Remote viewing is available through the free Hieasy app on iOS and Android with no monthly subscription. Optional 1TB HDD included. Manufactured by Shenzhen ESOE Technology Co., Ltd. with CE, FCC, RoHS, and ISO9001 certifications.
5MP Super HD Dome Camera with Metal Housing
Each dome camera captures 5-megapixel (2592x1944) resolution — 2.5x sharper than 1080P. The full-metal housing provides vandal resistance and durability, while the dome form factor offers a discreet, professional appearance ideal for both indoor and outdoor installation. The compact design blends seamlessly into any environment — retail stores, offices, warehouses, and homes.
AI Human & Vehicle Detection — 99% Fewer False Alerts
The T5AI chipset uses deep learning to distinguish humans and vehicles from irrelevant motion — swaying trees, passing animals, or shifting shadows. Only genuine security events trigger alerts, keeping you informed without the constant nuisance of false notifications.
100ft Color Night Vision — Three Modes
Dual warm and cool LED technology provides full-color footage up to 100 feet at night. Choose from three modes: always-on color for maximum visibility, infrared for covert monitoring, or smart mode that activates color only when a person or vehicle is detected.
Two-Way Audio
Built-in microphone enables real-time two-way communication through the Hieasy app. Talk to visitors, warn intruders, or check on family — all from your smartphone.
Perimeter Protection & Smart Zones
Set custom detection zones with line crossing, region intrusion, and boundary alerts. Define restricted areas around fences, doorways, and parking lots for instant alarm notifications.
Instant Smart Alerts
Receive real-time push notifications and email alerts on your phone the moment suspicious activity is detected.
5-in-1 DVR — Maximum Compatibility
The DVR supports 5 input formats: AHD, TVI, CVI, CVBS, and IP. Mix and match cameras from different brands and technologies. Upgrade from an older analog system without replacing the DVR — simply add new cameras alongside existing ones.
H.265+ Compression
H.265+ saves up to 75% storage space vs H.264. The included 1TB HDD stores weeks of recording. Supports SATA drives up to 8TB.
Remote Viewing
Free Hieasy app for iOS, Android, Windows, Mac. P2P cloud — scan QR code to connect, no static IP needed.
Certifications
Specifications
| Camera Type | 5MP AHD Metal Dome Camera |
| Resolution | 5MP (2592x1944) @ 12fps |
| DVR Channels | 4CH / 8CH / 16CH |
| DVR Type | 5-in-1: AHD / TVI / CVI / CVBS / IP |
| Connection | BNC Coaxial Cable (analog) |
| Compression | H.265+ / H.265 |
| Night Vision | 100ft Color / IR / Smart Triggered |
| AI Features | Human/Vehicle Detection, Face Capture, People Counting, Line Crossing |
| Audio | Two-Way Audio (built-in mic) |
| Waterproof | IP67 Metal Housing |
| Video Output | HDMI + VGA |
| Storage | SATA HDD up to 8TB (1TB option available) |
| App | Hieasy (iOS & Android) — free |
| Certifications | CE, FCC, RoHS, ISO9001 |
| Package Size | 35 x 30 x 18 cm |
| Weight | 4.0 kg |
What Is in the Box
- 1x 5-in-1 DVR (4CH/8CH/16CH)
- 5MP AHD Metal Dome Cameras (per selected kit)
- BNC + Power Cables
- 12V Power Adapters
- 1x USB Mouse
- 1x User Manual
- Mounting Hardware
Frequently Asked Questions
Q: What is the difference between this and a PoE/IP system?
A: This system uses analog BNC coaxial cables — no network setup needed. PoE/IP systems use Ethernet and require router configuration. Analog is simpler, lower cost, and supports longer cable runs (up to 500m).
Q: What does 5-in-1 DVR mean?
A: It accepts AHD, TVI, CVI, CVBS, and IP camera inputs. You can mix cameras from different brands and generations on one DVR.
Q: Is a hard drive included?
A: Select the HDD variant for included storage. Otherwise, use any SATA HDD up to 8TB.
Q: Is there a monthly fee?
A: No. Hieasy app is free with no subscription.
Q: Can I add more cameras later?
A: Yes. Start with any number and expand up to your DVR channel limit (4/8/16).
